"Inspections with Integrity"

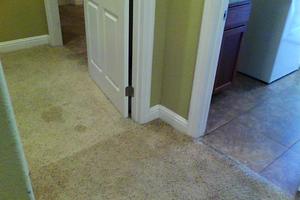

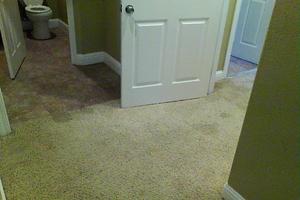

With the naked eye you can't see the water intrusion caused by the broken pipe, but with the thermal camera you can clearly see the water along the wall and seeping through the carpet

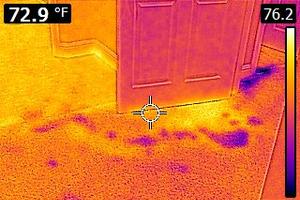

Thermal camera caught a broken pipe underneath the concrete slab of this home causing water to seep through the carpet
The art of an IR inspection is to interpret the results as accurately and reasonably as possible such that the client is given actionable information in order to proceed with necessary repairs
Benefits of Thermal Imaging in the detection of:
• Water infiltration (roof leaks located with recent rain fall within 24~48 hours)
• Cold air infiltration
• Excessive moisture in building materials
• Stud / Joist / Beam / Rafter placement and structure
• Insulation gaps, insufficient and unevenness
• Electrical drops, panels, breakers, switches and wire connections
• Heating and cooling duct placement, insulation, air leaks
• Pipe location
• Special Inspections
o Pest infestation
o Energy audits
o Insurance claims
Thermal Imaging Limitations:
• Thermal imaging only displays surface temperatures of solid objects.
• IR detects the temperature based upon wavelength of the light emitted by the object (longer wavelength, colder). IR, therefore, does not show the temperature of objects that reflect light, (glass, shiny metal, light colored objects in direct sunlight).
• IR, does not “see through walls”, but only displays the very slight differences in surface temperature of the wall. Images of areas “behind” and not in contact with walls depends upon the temperature difference of the area. It is easier to see “hot” objects because they will be radiating heat to the not-in-contact surface. See pictures below for how IR is still incredibly useful.
• Careful adjustment of the range of temperatures displayed is important to proper imaging and interpretation
Infrared cameras translate the heat signatures of objects into colors on a gradient scale, with higher temperatures appearing as lighter colors, and lower temperatures and wet areas appearing as darker colors. Also known as thermal imaging and thermography, IR technology captures the light that exists just outside the visible spectrum. Thermal images show surface-heat variations, which is why an IR camera is such a diverse tool for commercial and home inspections that can be used for a variety of applications. Abnormally hot electrical components and connections can be viewed during an electrical inspection. Areas of moisture that may lead to leaks and structural damage can be located based on apparent temperature differences. Heat loss and air leakage in a building envelope, and even areas of insufficient insulation, can be pinpointed quickly and accurately during an energy audit. Below are just a few examples of the benefit of thermal imaging .
Infrared Thermal Imaging
